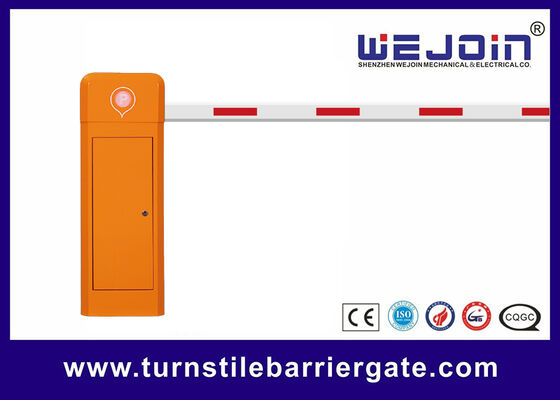

Automatic Barrier Gate with DC24V Variable Frequency Motor and 6m Straight Boom Featuring Intelligent Obstacle Detection

Automatic Barrier Gate Equipped with DC24V Variable Frequency Motor and 6m Straight Boom for Stable Barrier Control

The boom barrier gate is equipped with a DC variable frequency motor, combined with a heavy-duty connecting rod transmission mechanism and a balancing spring system. This optimized drive design ensures smooth, stable, and reliable operation for high-frequency vehicle access applications.

• DC variable frequency motor with precise speed control
• Heavy-duty connecting rod transmission mechanism
• Soft start and soft stop to reduce mechanical impact
• Smooth and low-noise operation
• Motor service life up to 6 million cycles
• Balance spring rated for up to 500,000 cycles

To enhance operational safety, the barrier gate incorporates an automatic reversing function. When the boom encounters an obstacle during the closing process, it immediately reverses direction to help prevent damage and improve safety for vehicles and pedestrians.

• Fast obstacle response
• Automatic reversing during boom descent
• Reduced collision risk
• Enhanced protection for vehicles and pedestrians

The controller supports multiple external safety accessories, providing comprehensive anti-crash protection.

• Radar detector
• Loop detector
• Infrared photocell

The controller includes a built-in DC12V power supply, allowing external devices such as radar sensors to be powered directly, simplifying wiring and installation.

The barrier gate provides multiple communication options for intelligent parking systems and access control integration.

• Standard RS485 communication interface
• Relay signal output
• Compatible with parking management systems
• Supports license plate recognition (LPR) systems

RS485 offline communication enables multiple barrier gates to operate synchronously without requiring a central controller, making it suitable for dual-lane and multi-lane entrances.

An optional Bluetooth module is available for wireless setup and diagnostics. Using a smartphone or tablet, users can configure parameters and perform debugging through a dedicated mobile application or mini-program.

• Wireless parameter configuration
• Real-time diagnostics
• Convenient maintenance
• Faster installation and commissioning

The barrier gate features a large LCD display with an intuitive English visual menu. This user-friendly interface simplifies parameter settings, function selection, and troubleshooting, making on-site commissioning easier for installers and operators.

• Easy operation
• Visual menu navigation
• Convenient parameter adjustment
• Simplified troubleshooting

The wire control interface can be used by parking management systems or external controllers to operate the barrier gate.

• Open: Short-circuit "UP" and "GND"
• Close: Short-circuit "Down" and "GND"
• Stop: Short-circuit "Stop" and "GND"

During boom closing, when the "Infrared Photocell Interface" and "GND" are short-circuited, the boom will immediately reverse and lift automatically.

During boom closing, when the "Loop Detector Interface" and "GND" are short-circuited, the boom will reverse and lift. After reaching the fully open position, the boom will automatically close when the signal is disconnected.

The RS485 communication interface allows the barrier gate to be controlled and monitored by a computer or parking management system.

• Remote barrier gate control
• Real-time status monitoring
• System integration with intelligent parking platforms
• Online synchronous control of paired barrier gates
• Suitable for dual-lane and multi-lane applications
