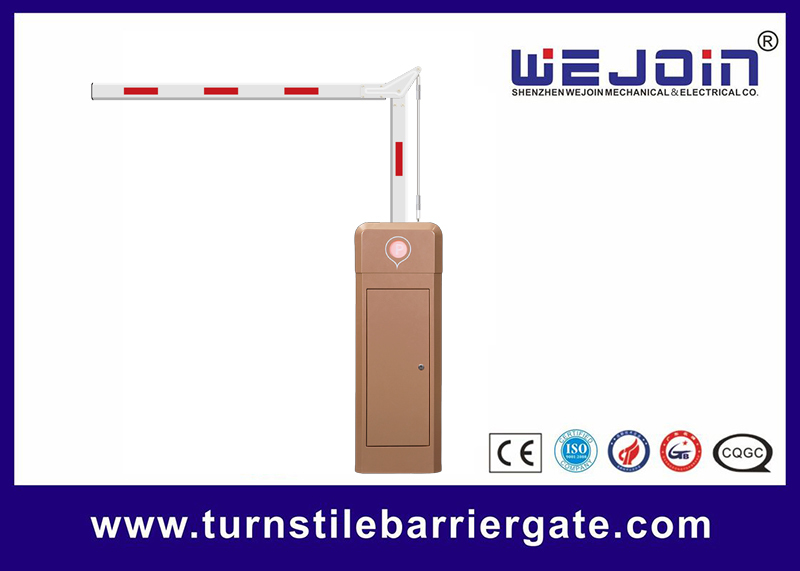

Nice electromechanical 5m 90 Degree Folding Arm for Automatic Arm Barrier System

50 set
MOQ
Onderhandelbaar
Prijs
Nice electromechanical 5m 90 Degree Folding Arm for Automatic Arm Barrier System
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Boomtype: Rechte giek / drijvende giek
Spanning: Wisselstroom 110V-265V
Gieklengte: Max 6m (aangepast)
Garantie: 2 jaar
Kleur behuizing: Goud
Applicatie: Parkeerplaats
Markeren:

electromechanical folding arm barrier

,

5m automatic barrier gate

,

90 degree arm barrier system
Basis informatie
Plaats van herkomst: China
Merknaam: WEJOIN
Certificering: CE ISO
Modelnummer: CB01VF-I
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Karton
Levertijd: 15 werkdagen na ontvangen betaling
Betalingscondities: T/T
Levering vermogen: 10000 REEKSEN/MAAND
Productomschrijving

Nice electromechanical 5m 90 Degree Folding Arm for Automatic Arm Barrier System


Vehicle Barrier Gate Technical Data

  • Model: WJCB01VF-H, WJCB01VF-I

  • Running Speed: 1-4S, 2-6S

  • Boom Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence

  • Max Boom Length: 8M

  • Input Voltage: AC100-265V

  • Frequency: 50/60HZ

  • Motor Voltage: DC24V

  • Enclosure Rating: IP54

  • Working Temperature: -30°C ~ +70°C

  • MTBF: 6,000,000 times

  • Traffic Flow Application: 24 hours uninterrupted operation

  • Max Motor Power: 240W, 180W

  • Max Motor Speed: 500r/min, 360r/min

  • Max Torque: 280N.m, 320N.m


Barrier Gate Controller Interface Explanations

Item

Explanation

Wire Control Interface

This interface is available for parking system, also available for external controller to control barrier gate.

UP: Short circuit “UP” and “GND”

Down: Short circuit “Down” and “GND”

Stop: Short circuit “Stop” and “GND”

Anti-smashing Interface

Infrared Photocell: boom will lift up when short circuiting “Infrared photocell interface” and “GND”  during boom down.

Loop Detector: boom will lift up when short circuiting “loop detector interface” and “GND” during boom down; in up limit position, boom will fall down automatically after these two interfaces disconnected.


Boom Barrier Gate Functions & Features

1. DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times, spring life 500,000 times.

2. With auto-reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.

3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.

4. Support RS485 communication or RS485 off-line connection.

5. Optional Bluetooth module, convenient debugging of barriers through small programs.

6. Large LCD screen display, English visual menu, easy function selection and debugging.

7. Left-installation and right-installation can be changed.



Nice electromechanical 5m 90 Degree Folding Arm for Automatic Arm Barrier System 0
